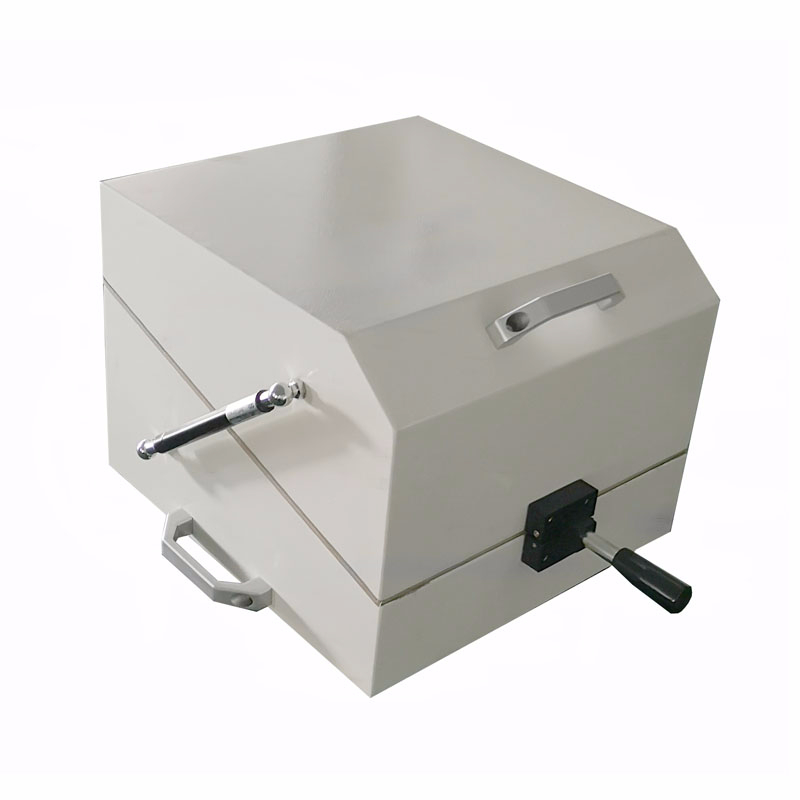

Sub-6GHz & UWB Manual Shield Box/RF isolation box/RF box
ST-S003 provides shielding effectiveness with a frequency range of 0.8GHz to 12 GHz. ST-S003 is designed to test Small-sized devices such as Smartphones，wifi/bluetooth terminal equipment . The wide range of this box enables testing on traditional technologies like Wifi, Bluetooth, Zigbee, as well as on forward-looking wireless communication technologies like 5G, UWB, and Wi-Fi 6E.
+86 18038170771RF isolation box/rf shield box /rf shielded box/rf shielding box Application

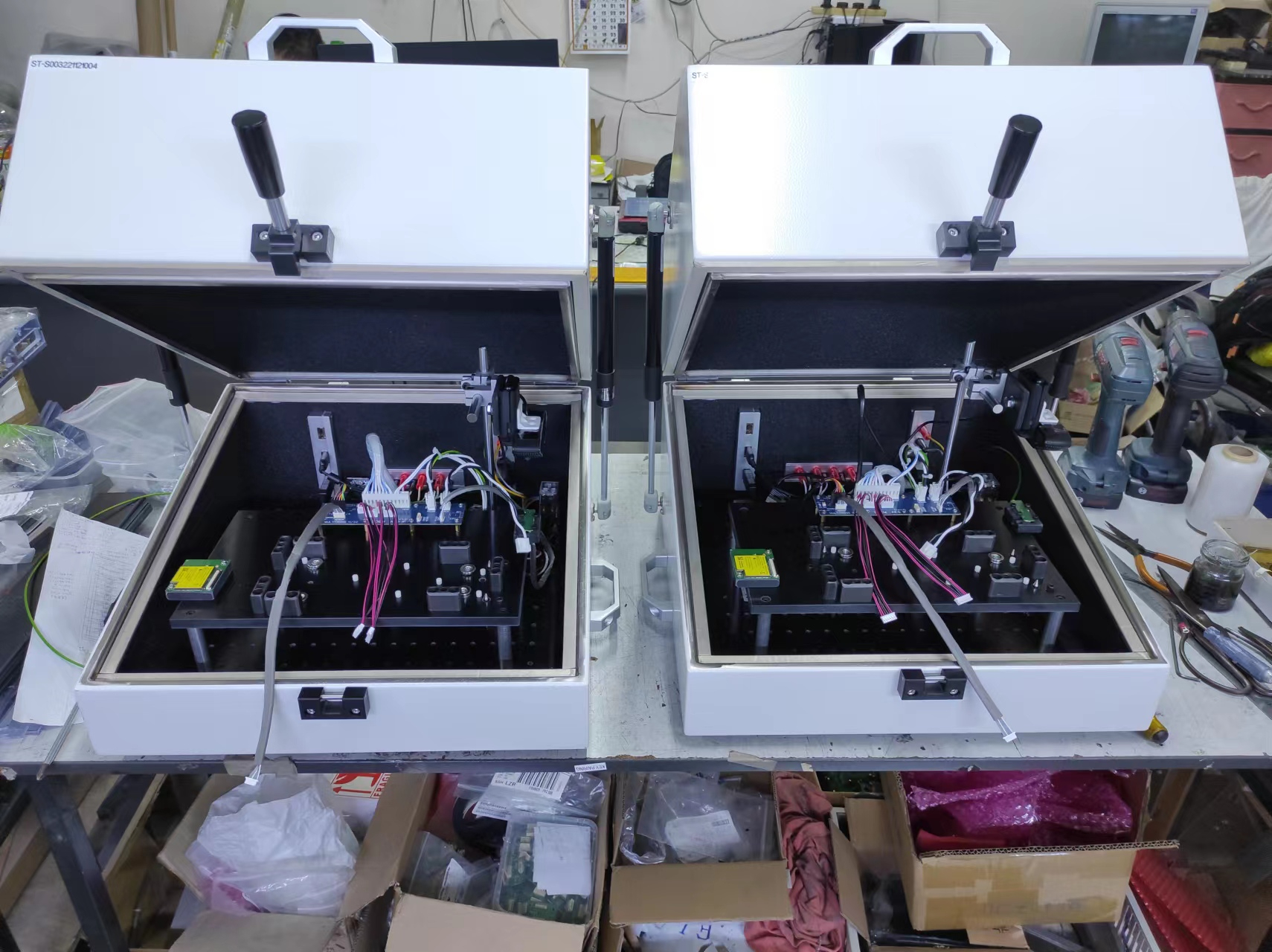

ST-S003 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing
Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
Features
Reliable high RF shielding up to 12GHz
Manual operation
Easily customizable to meet various test needs
Shock absorbers on lid
Specification
Inner Dimension | (L)400 (W)400x (H)280 mm |

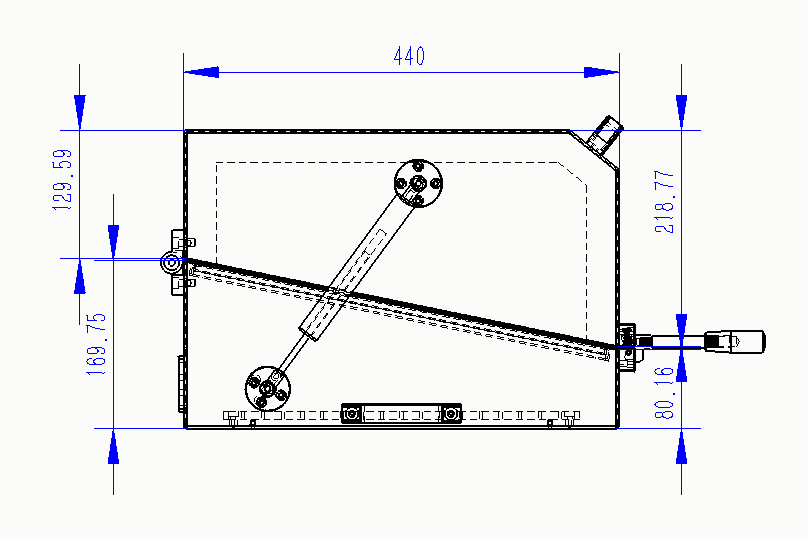

Outer Dimension | (L)490 x (W)440 x (H)300mm |
Shielding Isolation | 800MHz~8.5GHz>70dB |
Shielding Material | Microwave Absorber |
Materiel | metal plate |
Weight | approx.18kg |
Surface Color | Grey white ( According to the customer request custom color) |
Operation temperature | 0 ~ 50 ℃ |
Storage temperature | -10～60°C |
I/O Connectors | SMA-SMA*6,RS232*1,USB*2,RJ45*1,DC*1 |
